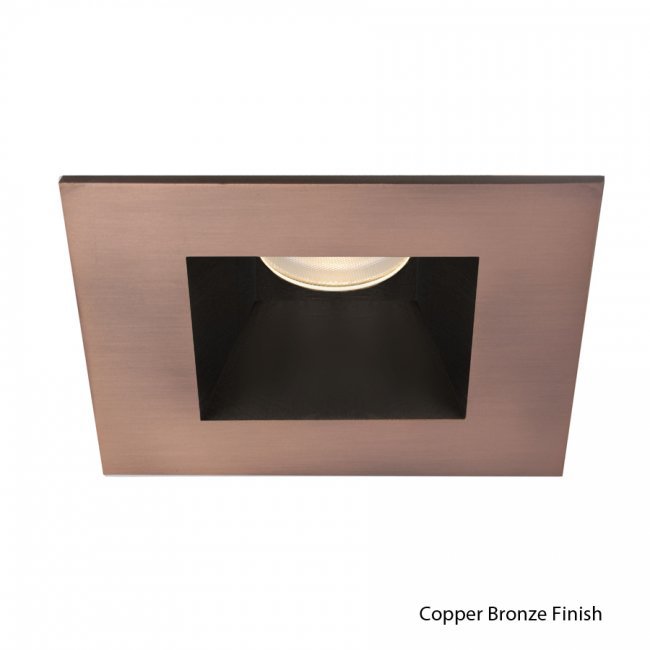

Tesla - 3.5" High Output LED Recessed Downlight T718
Open Reflector Trim, Square
Engineered with state of the art high output LED technology for optimal thermal management and heat dissipation, NEW Energy Star® Tesla recessed downlights offer various styles and optics including spot, narrow and flood beam spreads. These premium luminaires deliver superior performance with higher lumen output than a 50w MR16 while using 60% less power.
- Multi-chip LED technology for maximum brightness
- Die-cast aluminum, minimum profile trim in beautiful plated or powder coated finishes
- Flood, Narrow Flood and Spot beam spreads
- 35° cut-off angle for glare control
- 50,000 hour rated life
- Smooth and continuous ELV dimming (down to 15%) for 120V only
- ANSI compliant warm/neutral LEDs
- Interchangeable reflectors for changing beam spreads
- Replaceable LED modules
Finishes
BN
CB
WT
| Model | Beam | Color Temp | Finish |
|---|---|---|---|
|
HR-3LED-T718 |
F-50° N-28° S-15° |
27 - 2700K 9W - 3000K (90 CRI) W - 3000K 35 - 3500K C - 4000K |
BN-Brushed Nickel WT-White CB-Copper Bronze |
Input: 120V AC
Power Consumption: 21.5W
Lumens: 869Lm
CRI: 90 (85 Typical)
|
Interchangeable Reflectors |
Replacement Modules | CRI | CCT | |
| SL-REF-LUX10-S | Spot | LXS8-PW27 | 85 | 2700K |
| SL-REF-LUX10-N | Narrow Flood | LXS9-PW30 | 90 | 3000K |
| SL-REF-LUX10-F | Flood | LXS8-PW30 | 85 | 3000K |
| LXS8-PW35 | 85 | 3500K | ||
| LXS8-PW40 | 85 | 4000K |
Specification Sheet
Dimming Report
Revit File
IES Files - right click > "Save target as" to download
