DISCONTINUED

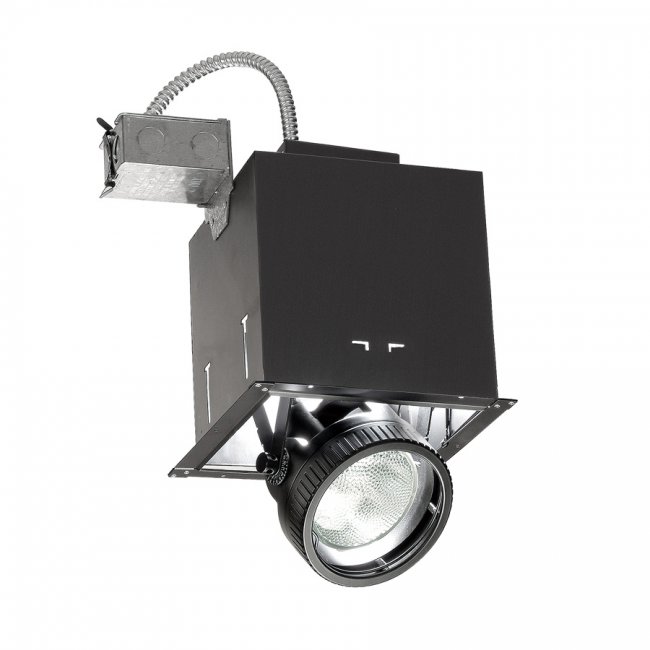

7" Aperture Precision Modules - MT7-1X1-R
Non-IC Remodel AR111, PAR36, PAR30
The high performance Precision Module 7" Series is available in 1x1, 1x2, 1x3, 1x4, and 2x2 sizes, utilizing any combination of AR111, PAR36, and PAR30 Halogen modules. They are fully extendable and feature a high degree of adjustability along with two locking screws to ensure proper aiming - even during re-lamping. The Precision Module Series provides the flexibility required for today's unique merchandising and accent lighting applications.
Housing for use in remodeling applications
Die-formed 20-gauge steel
Non-IC rated
Aperture frame formed of heavy-duty 16-gauge steel
Optional white trim provides a finished look
*Only available as complete unit
Housing
| Model | Cell | Description |
|---|---|---|
|
MT7-1X1-RO MT7-1X1-RT |
1 x 1 1 x 1 |
Remodel Housing-Trimless Remodel Housing-Trim |
Modules
| Configuration | Cell Lamp | Voltage | Qty | Wattage |
|---|---|---|---|---|
|
S-Same |
AR11- MT-AR111 AR111(12V) PAR36- MT-AR111 PAR36(12V) PAR30- MT-PAR30 PAR30(120V) |
G-120V |
1 |
75W 50W 75W |
Lamp: 12V/120V, 50W/75W, order separately
Specification Sheet
IES Files - right click > "Save target as" to download
