DISCONTINUED

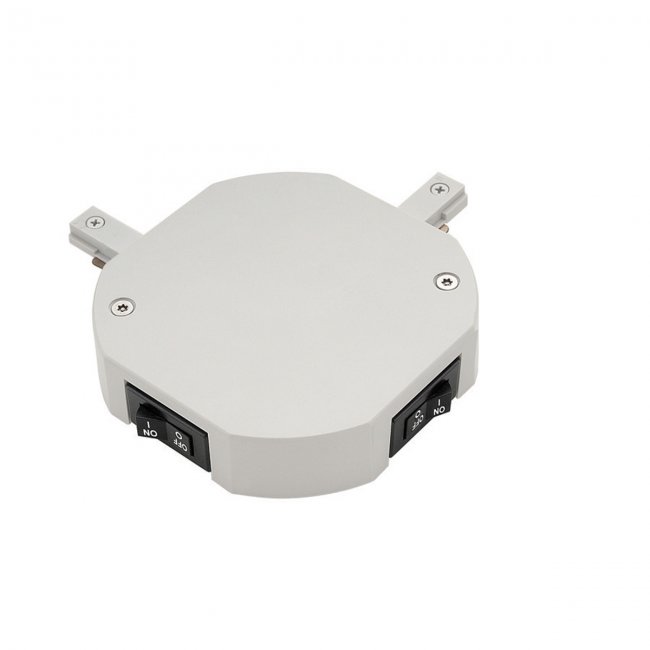

120V Track Current Limiter - Double Live End Left
ASHRAE 90.1 and California Title 24
Easy to install and assures compliance to California Title 24 or ASHRAE 90.1 requirements
Energy code track installations are subject to wattage limitations based upon the size and usage of the space
The Track Current Limiter may be mounted as a standard canopy, used in place of an "I" connector or as a Live-end.
If the track is overloaded, the Current Limiter circuit breaker will trip and shut down power to the track.
The device maybe reset when the overall sum of fixture wattages are reduced below the circuit breaker rating.
May be mounted as a standard canopy, used in place of an "I" connector or as a live-end
Finishes
![](/sites/waclighting.com/files/finishes/finish_BK.jpg)
![](/sites/waclighting.com/files/finishes/finish_WT.jpg)
Model | Circuit Breaker | Wattage | Finish |
---|---|---|---|
TJL-J2-LEFT-J2 Track |
2-1A - 2 x 1A 2-2A - 2 x 2.5A 2-5A - 2x 5A 2-7A - 2 × 7.5A 2-10A - 2 × 10A |
2 x 120W 2 x 300W 2 x 600W 2 x 900W 2 x 1200W |
BK - Black WT - White |
