*Limited availability, consult factory

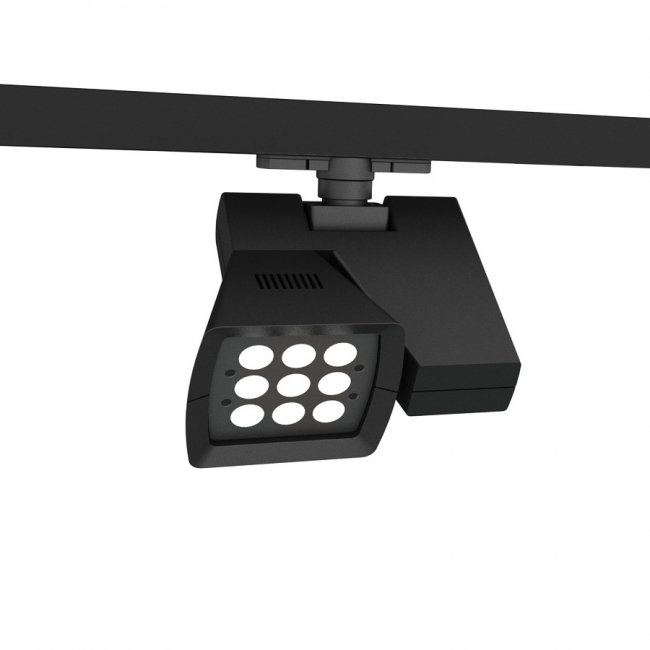

LEDme® LOGOS

  • Power: 23W
  • Lumens: Up to 1845
  • CBCP: Up to 18,049
  • Compare To: 39W HID
  • CRI: 85
  • Dimming: 100% - 10%
  • Rated Life: 100,000 hours
  • Single tool-free lens assembly for easy in field change of beam angle
  • 360 horizontal and 180 vertical aiming
  • Die-cast aluminum construction
  • Dim with electronic low voltage (ELV) dimmer
  • High performance with fixture efficacy up to 79Lm/W

System Model Beam Color Temp Finish

WTK - 120V

WHK - 277V

LED23

S - 12°*

N - 24°

F - 36°

E - 19° X 32°
Elliptical Spread

27 - 2700K

30 - 3000K

35 - 3500K

40 - 4000K

BK - Black

PT - Platinum *DISCONTINUED

WT - White

*not Energy Star Rated


Replaceable LED Modules

2700K
3000K
3500K
4000K
RM-9X3-27
RM-9X3-30
RM-9X3-35
RM-9X3-40

Interchangeable Beam Reflectors

  LED23
12º
24º
36º
19º X 32º

OPH-9X3-12D
OPH-9X3-25D
OPH-9X3-40D
OPH-9X3-ELD

Specification Sheet

IES Files - right click > "Save target as" to download

Write a comment

Be the first to review this product
Remember to order housing.
