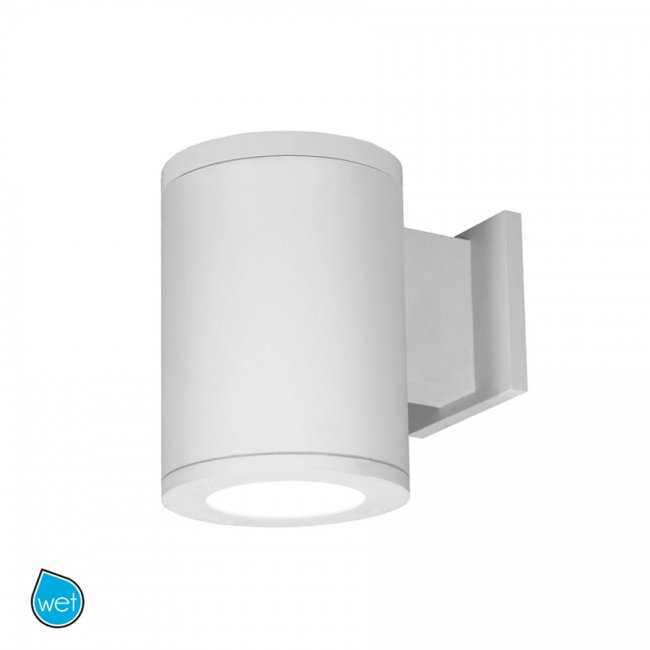

DS-WS, DS-WD
Tube Architectural - Wall Mount
-
IP65 rated, ETL & cETL wet location listed
- Solid aluminum construction
-
Universal driver (120V-220V-277V)
-
Custom DS-WD configurations available, consult factory
-
See Specification Sheet for Energy Star 2.0 Rated Offerings
-
Energy Star® Rated
Finishes
| Model | Beam | Color Temp | CRI | Light Direction | Finish | |
|---|---|---|---|---|---|---|
| Single |
DS-WS05 5", 27W DS-WS06 6", 36W DS-WS08 8", 54W |
S Spot N Narrow F Flood |
927 2700K 27 2700K 930 3000K 30 3000K 35 3500K 40 4000K |
90 85 90 85 85 85 |
S Straight up or down  |
BK- Black WT- White BZ- Bronze GH- Graphite |
| Single | DS-WS05 5", 27W DS-WS06 6", 36W DS-WS08 8", 54W |
F Flood |
927 2700K 27 2700K 930 3000K 30 3000K 35 3500K 40 4000K |
90 85 90 85 85 85 |
A Away from the wall
B Towards the wall  |
BK- Black WT- White BZ- Bronze GH- Graphite |
| Double | DS-WD05 Double, 5", 27x2W DS-WD06 Double, 6", 36x2W DS-WD08 Double, 8", 54x2W |
S Spot N Narrow F Flood |
927 2700K 27 2700K 930 3000K 30 3000K 35 3500K 40 4000K |
90 85 90 85 85 85 |
S Straight up and down  |
BK- Black WT- White BZ- Bronze GH- Graphite |
| Double | DS-WD05 Double, 5", 27x2W DS-WD06 Double, 6", 36x2W DS-WD08 Double, 8", 54x2W |
F Flood |
927 2700K 27 2700K 930 3000K 30 3000K 35 3500K 40 4000K |
90 85 90 85 85 85 |
A Away from the wall
B Towards the wall
C One side each  |
BK- Black WT- White BZ- Bronze GH- Graphite |
Specification Sheet
Revit File
IES Files - right click > "Save target as" to download
Instruction Sheet
