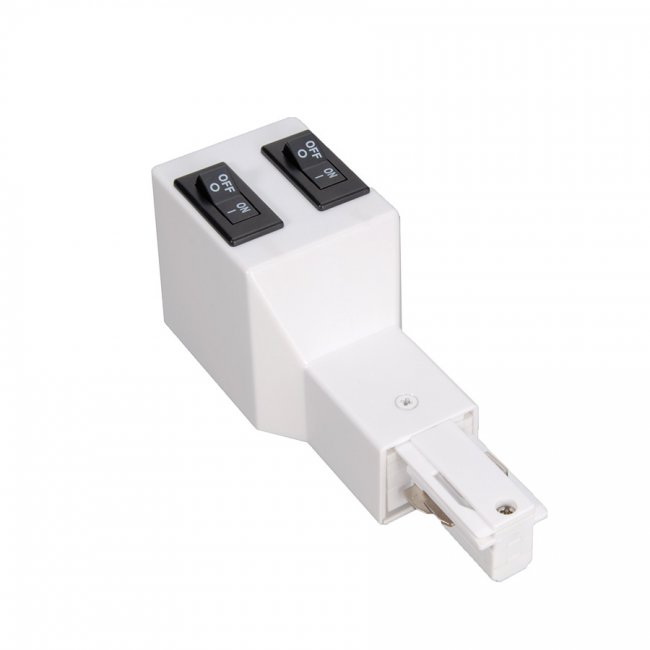

Track Current Limiter - Live End Right
Surface Mount Two Circuit Architectural Track
Assures compliance to California Title 24 or ASHRAE 90.1 requirements
| System | Rating/Circuit | Max Wattage | Finish |
|---|---|---|---|
|
WEDR - 120V |
1/5A - 2 x 0.2Amp 1/2A - 2 x 0.5Amp 1A - 2 x 1 Amp 2A - 2 x 2.5Amp 5A - 2 x 5Amp 7A - 2 x 7.5Amp 10A - 2 x 10Amp |
2 x 24W 2 x 60W 2 x 120W 2 x 300W 2 x 600W 2 x 900W 2 x 1200W |
BK- Black WT - White PT - Platinum |
WHEDR - 277V |
1A - 2 x 1 Amp 2A - 2 x 2.5Amp 5A - 2 x 5Amp 7A - 2 x 7.5Amp 10A - 2 x 10Amp |
2 x 277W 2 x 692W 2 x 1385W 2 x 2077W 2 x 2770W |
BK- Black WT - White PT - Platinum |
Specification Sheet
Instruction Sheet
