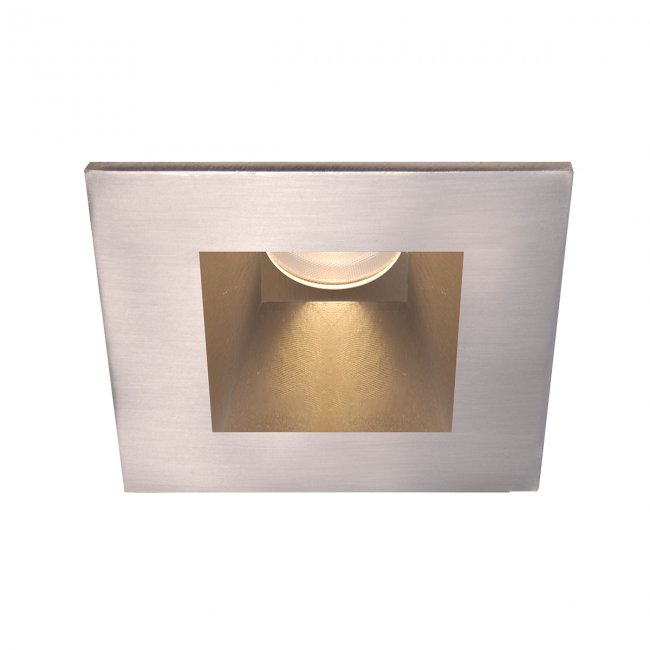

3.5" Tesla Pro LED Shower Trim
- Power: 22W
- Delivered Lumens: Up to 1460
- Comparable to: 75W MR16
- ELV Dimming: 100% - 15% (120V Only)
- 0-10V Dimming: 100% - 10%
- Rated Life: 50,000 hours
- 3.5” aperture
- Wet location listed
- 30° visual cutoff angle for glare control
- Adjustable fixtures are ideal for sloped ceiling applications
- Universal input voltage (120V-220V-277V)
- Fixtures with * are Title 24 JA8-2016 Compliant.
| Model | Beam | Color Temp | CRI | Finish |
|---|---|---|---|---|
|
HR3LEDT818P |
N - 30° |
827 - 2700K 927* - 2700K, Title 24 830 - 3000K 930* - 3000K, Title 24 835 - 3500K 840 - 4000K |
85 90 85 90 85 85 |
BN - Brushed Nickel WT - White CB - Copper Bronze |
|
Interchangeable Reflectors |
Replacement Modules | CRI | CCT | |
| SL-REF-BL10-1-N | Narrow | BXRC-27E1000-B-23 | 85 | 2700K |
| SL-REF-BL10-1-F | Flood | BXRC-27G1000-B-23 | 90 | 2700K |
| BXRC-30E1000-B-23 | 85 | 3000K | ||
| BXRC-30G1000-B-23 | 90 | 3000K | ||
| BXRC-35E1000-B-23 | 85 | 3500K | ||
| BXRC-40E1000-B-23 | 85 | 4000K |
Specification Sheet
Dimming Report
Revit File
IES Files - right click > "Save target as" to download
