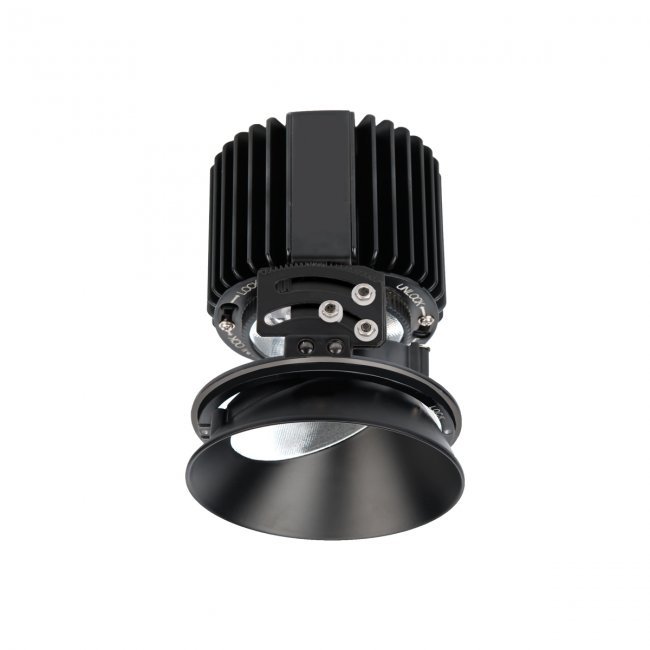

Volta 4.5 Inch Architectural Downlight
Trimless Adjustable – Round


Delivered Lumens: Up to 2340

CBCP: Up to 10910

Comparable to: 70W HID PAR30

ELV Dimming: 100% - 5%

0-10V Dimming: 100% - 0%

Lutron Hi-Lume 1% Driver option

Input: 120-277V

Rated Life: 50,000 hours

Wet location listed standard

Wide range of accessories, including glare control, optic and color lenses

Field interchangeable optics

0-45° vertical and 365° horizontal lockable hot aiming

Title 24 JA8-2016 Compliant


Trim Beam Color Temp/CRI Finishes

R4RAL Round Trim

S - 15°

N- 25°

F - 40°

827 - 2700K / 85

927 - 2700K / 90

830 - 3000K / 85

930 - 3000K / 90

835 - 3500K / 85

840 - 4000K / 85

BK - Black

HZ - Haze

WT - White

CB - Bronze

Specification Sheet

Dimming Report

IES Files - right click > "Save target as" to download

Instruction Sheet

Write a comment

Be the first to review this product
Add to Wish List Successful. May we suggest certain component that are needed to complete the system.
Remember to order housing.
