Volta 4.5 Inch Architectural Downlight

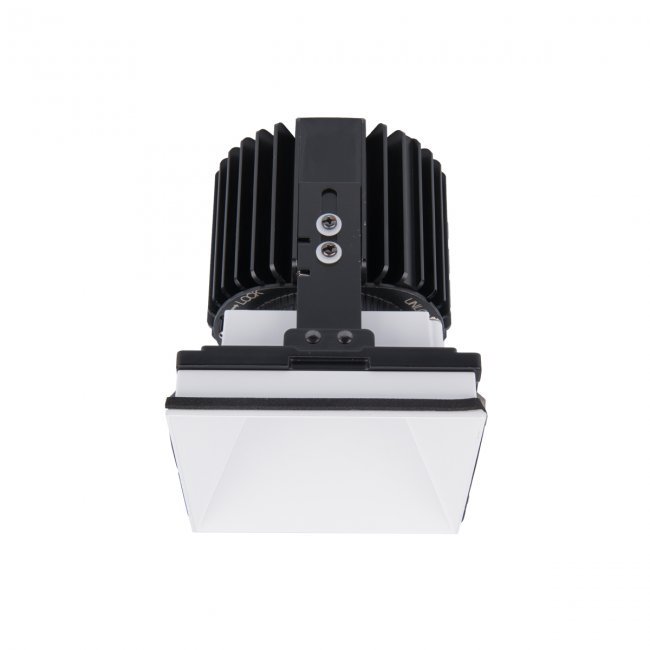

Trimless Downlight – Square
Delivered Lumens: Up to 3350
CBCP: Up to 11985
Comparable to: 70W HID PAR30
ELV Dimming: 100% - 5%
0-10V Dimming: 100% - 0%
Lutron Hi-Lume 1% Driver option
Input: 120-277V
Rated Life: 50,000 hours
Wet location listed standard
Optimized cut-off for superior glare control
Wide range of accessories, including glare control, optic and color lenses
Field interchangeable optics
Beam spreads from 15° spot to 60° wide flood
Energy Star 2.0 rated
Title 24 JA8-2016 Compliant
| Trim | Beam | Color Temp/CRI | Finishes |
|---|---|---|---|
R4SD2L Square Trim |
S - 15° N- 25° F - 45° W - 60° |
827 - 2700K / 85 927 - 2700K / 90 830 - 3000K / 85 930 - 3000K / 90 835 - 3500K / 85 840 - 4000K / 85 |
BK - Black HZ - Haze WT - White CB - Bronze |
Specification Sheet
Dimming Report
Revit File
IES Files - right click > "Save target as" to download
Instruction Sheet
