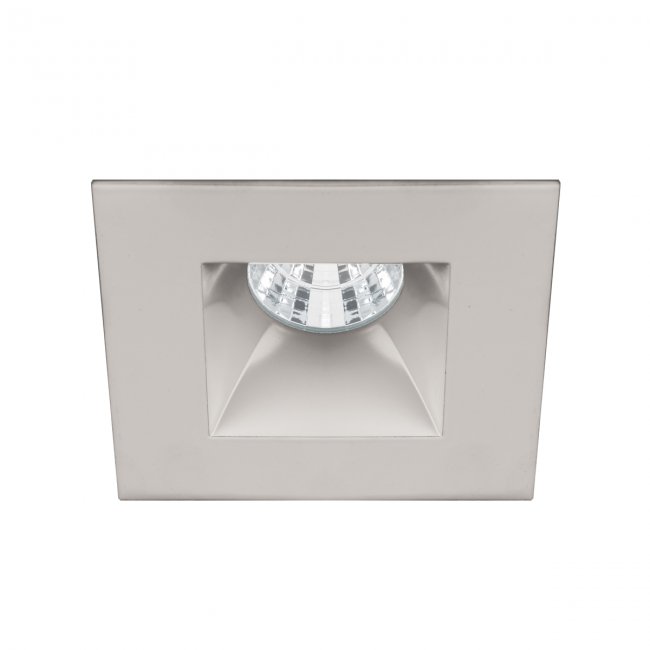

Oculux - 2" Square Open Reflector
All-in-one unit, ready to install right out of box
Wet Location Listed, 35° Visual Cutoff
- Power: 9W, 11W
- Comparable to: 50W MR16
- Input: 120V
- Rated Life: 50,000 hours
- Energy Star Rated
- CEC Title 24 Compliant
- Cutout 3 1/16"
- Single spot light source
- Ceiling thickness: 1/2" - 1"
- ETL and cETL Wet Location Listed
- Sold as new construction, may be reconfigured in the field for remodel
- ELV or TRIAC or 0-10V dimming compatible
Model | Beam | Max Lumens | Max CBCP | Color Temp | Finish |
---|---|---|---|---|---|
R2BSD |
N 25° F 45° |
700 |
2462 |
927 2700K 930 3000K |
HZWT Haze/White BN Brushed Nickel WT White |
Model | Beam | Max Lumens | Max CBCP | Color Temp | Finish |
---|---|---|---|---|---|
R2BSD-11 |
N 25° F 45° |
955 |
2749 |
927 2700K 930 3000K |
HZWT Haze/White BN Brushed Nickel WT White |
Specification Sheet
Dimming Report
IES Files - right click > "Save target as" to download
Instruction Sheet
