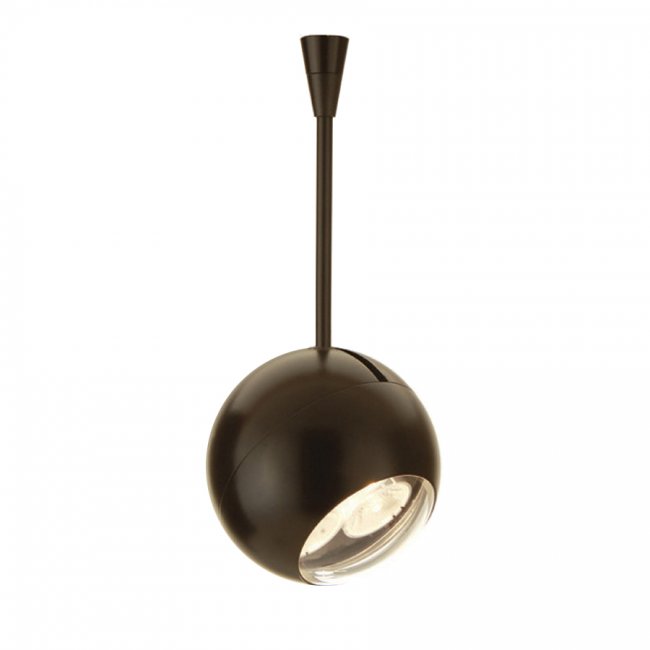

Orb - LED171
Quick Connect™ Fixtures

The uniquely designed Orb retains the same profile regardless of the aiming direction. Ideal for contemporary residential, retail and commercial spaces.

  • Power: 7.5W
  • Lumens: Up to 280
  • CBCP: Up to 2,451
  • Compare To: 35W MR16
  • CRI: 85
  • Dimming: Yes
  • Rated Life: 100,000 hours
  • Dim to 10% depending on system power supply. Use ELV (electronic low voltage) dimmer with electronic transformer. Use magnetlic low voltage dimmer with magnetic transformer.
  • Replacement LED module may be ordered separately (RM3X3-30-QF)
  • 360° horizontal rotation and 90° vertical adjustment
  • Die-cast aluminum construction


Model Extension Finish CBCP at 20°



X6 - 6" *Limited Availability, Consult Factory

X12 - 12" * Limited Availability, Consult Factory

BN - Brushed Nickel

DB - Dark Bronze


LED: 7.5W*, 12V, 3000K color temp, 280 lumens

*Power consumption may vary depending on the efficiency of the power supply being used, LED may be retrofit to existing 12V systems

Specification Sheet

IES Files - right click > "Save target as" to download

Instruction Sheet

Write a comment

Be the first to review this product
Remember to order housing.
