*Limited availability, consult factory

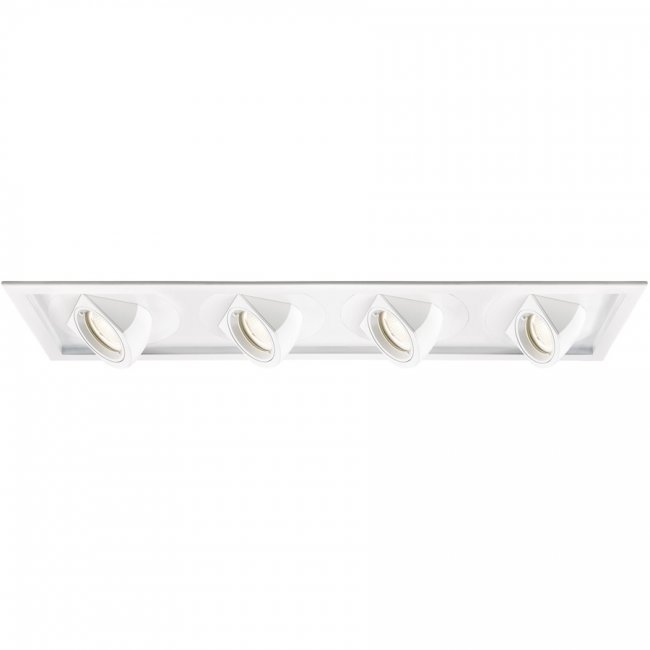

Tesla LED Multiple Spots Energy Star®

High brightness adjustable luminaires

  • Power: 22.5W/ light
  • Lumens: Up to 1515/ light
  • Compare To: 39W HID
  • CRI: Up to 90 (85 Typical)
  • Dimming: 0-10V dimming for 120V and 277V
  • Rated Life: 50,000 hours
  • Input Voltage: 120V - 277V
  • ETL & cETL listed
  • Accepts one lens and one accessory
  • Non-IC Airtight Housings
  • Individually Retractable Luminaires
  • Energy Star rated

Trims (Order Housings Separately)

Model   Beam Color Temp Finish Trim/Module




Invisible Trim™

S - 25°

F - 40°

927 - 2700K (90 CRI)

27 - 2700K

930 - 3000K (90 CRI)

30 - 3000K

35 - 3500K

40 - 4000K



Housing (Order Separately)

Model Rating


Non-IC Airtight

Specification Sheet

Dimming Report

IES Files - right click > "Save target as" to download

Instruction Sheet
